Strap Hinge Galvanized 70 cm
View our volume discount below:
Why choose for Strap Hinge Galvanized 70 cm?
- Very strong thanks to galvanized steel
- Protected against flash rust
Strap Hinge Galvanized 70 cm

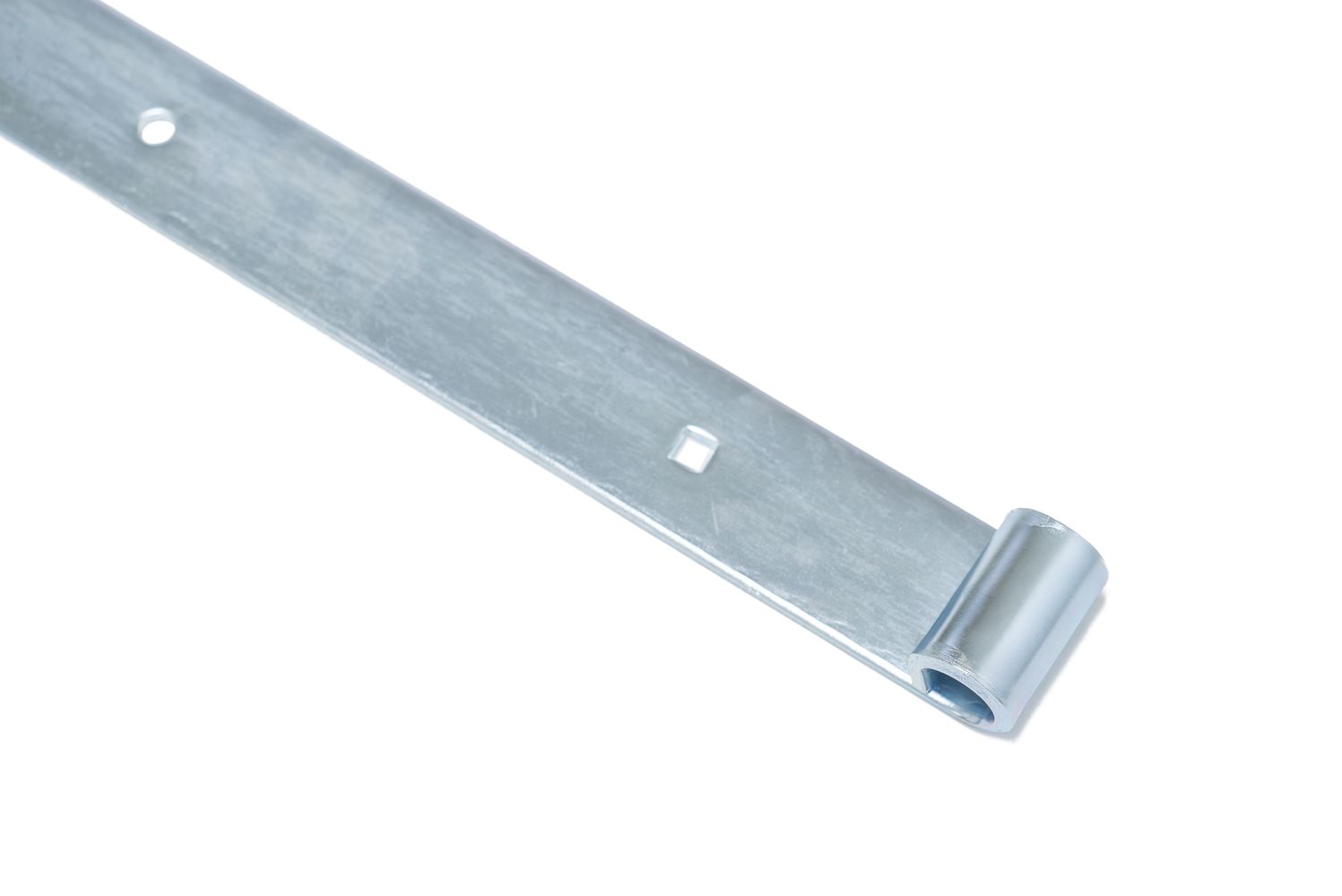

With this 70 cm strap hinge made of blue galvanized steel, you can easily install fence doors or gate fences. The strap hinges provide a modern and beautiful look. This strap hinge has 4 mounting holes with a diameter of 8 mm. Based on the thickness of the door, you determine which fasteners you use to mount the strap hinges. These strap hinges have a 19 mm eye. This makes the hinges suitable for our 16 mm galvanized plate pintle.
Tip: Take a look at our range of slide bolts and gate latches to close your gate or fence.
With which bolts do I mount these strap hinges?
You can mount the strap hinges from Wovar with lag screws or carriage bolts. With a door thickness of 35 mm including strap hinge, our M8x30 mm lag screws are sufficient. For thicker doors, it is recommended to attach the strap hinges with our galvanized carriage bolts. Is the door thickness approximately 40 mm? Then use our galvanized carriage bolts M8x50 mm. For a door thickness of 50 mm, choose our galvanized carriage bolts M8x60 mm.
How do I attach strap hinges to my door?
Mount the strap hinges on the same side as the door hinges. Place the strap hinge in the correct place on the door and mark the screw holes with a pencil. Are you using carriage bolts? Then it is necessary to pre-drill with our 9mm thick hardwood drill. After drilling, slide the carriage bolts through the hole. The semicircular head of the carriage bolts is on the inside of the door. By tapping the head of the carriage bolts with a rubber hammer, the square portion of the carriage bolts under the semicircular head is clamped into the wood. This prevents the carriage bolt from turning when tightening the nut.
Each stall has 1 square mounting hole. At the square hole, place the carriage bolt with the semicircular head on the same side of the rod. So that the square part under the semicircular head of the carriage bolt fits exactly in the square hole of the strap hinge. This ensures a solid connection of the hinges.
If you mount the strap hinges with lag screws, you pre-drill a hole with our hardwood drill 6mm. You will notice that screwing in the lag screw is a lot easier. You mount lag screws in a different way than the carriage bolts, namely the other way around. You screw the lag screw on the same side as the strap hinge. Make sure that each strap hinge mounting hole is provided with a lag screw or carriage bolt.
How many plate pintles do I need for my garden door?
For doors or gates in your garden that are lower than 120 cm, Wovar recommends using 2 hinges with slabs. For higher doors it is recommended to use 3 hinges. By mounting your garden door with 3 handles, you greatly reduce the chance that the door will warp.
Buy galvanized strap hinges 70 cm
Order the modern blue strap hinges passivated for the lowest price at Wovar. Take advantage of our volume discount and order 10 pieces. Green and construction companies, such as DIY companies, construction companies and gardeners, receive extra benefits at Wovar, such as discounts with a business account.
Do you prefer hinges with resistance or hinges with a bend? View our entire range of hinges and pintles.
