Adjustable Corner Bracket for Decks 12 cm - Per piece
Why choose Adjustable Corner Bracket for Decks 12 cm - Per piece?
- Easy to adjust
- Rust-resistant
- Strong galvanised steel
Related products
Product details
| Brand | Wovar |
|---|---|
| SKU | WV002578 |
| EAN code | 8720647819774 |
| Feature 1 | For 125 to 200 mm wide beams |
| Type | Corner bracket |
| Depth | 1.50 mm |
| Width | 10 cm |
| Height | 12 cm |
| Length | 12 cm |
| Material | Galvanised steel |
| Beam size | 125 tot 200 mm hoog |
| Thickness | 1.50 mm |
| Adjustable | Yes |
| Dimensions | 120 x 100 x 120 mm |
Adjustable Corner Bracket for Decks 12 cm - Per piece

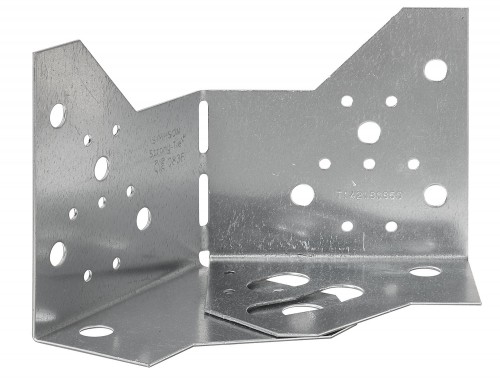

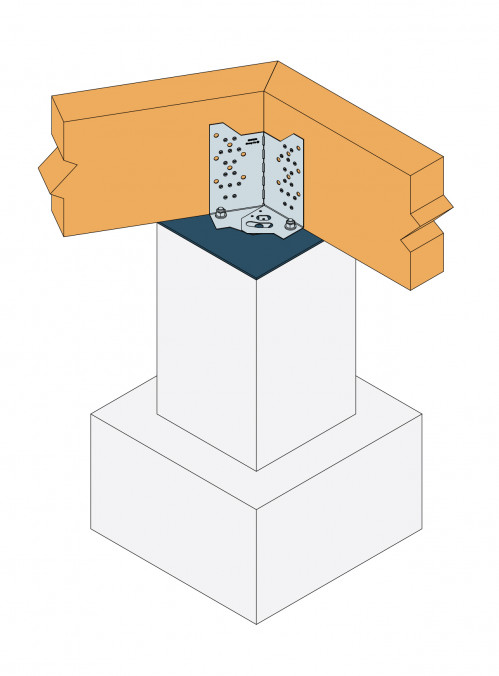

These corner brackets can be used to connect beams on concrete piers that will form the load-bearing structure for a deck. They have an adjustable angle, so you can adapt the angle to suit your needs. The angle can be a minimum of 90° and a maximum of 150°. The visual markers on the beam bracket facilitate determining the correct angle. The bracket is also available in a bigger version of 23 cm high.
Adjustable beam brackets
The corner bracket is suitable for 125 to 200 mm wide, wooden beams. The bracket is made of Galvanised steel, which is an incredibly strong material. As long as the zinc layer is not damaged, the bracket is also protected against rust.
Installing corner brackets
To attach the corner brackets to a wooden surface, you can choose between chipboard screws or flat head nails. If you are going to use screws, we recommend opting for 8 screws with a diameter of 8 mm, or 14 screws with a diameter of 5 mm. If you are going to use nails, we recommend using 14 nails with a diameter of 4 mm. You use these screws or nails in the vertical section of the bracket.
To mount the corner brackets to a concrete surface, you can choose between using 2 anchor bolts Ø 12, or 1 anchor bolt Ø 16. The best choice depends on the weight the bracket will have to bear, and the position of the bracket (distance to the edge of the pier, chosen angle). These bolts are used in the horizontal part of the bracket.
In the table below, you will find these options again.
| Wooden surface | Concrete surface |
| 14 flat head nails Ø 4.0 x 50 | 2 anchor bolts M12 |
| Or 14 chipboard screws Ø 5.0 x 40 | Or 1 anchor bolt M16 |
| Or 8 chipboard screws Ø 8.0 |
Buy adjustable corner brackets
The adjustable brackets are sold per piece. Companies in the construction and garden sector receive additional benefits, such as a business discount, with a business account.
Order angle brackets, joist hangers, beam brackets, mending plates, or any of our anchors and brackets in bulk to take advantage of our volume discount.
Is this not quite what you are looking for? Check out more angle brackets, or browse our entire range of metal brackets.
