Cranked Hinge Black with Square Holes 120 cm - Rustic Tip

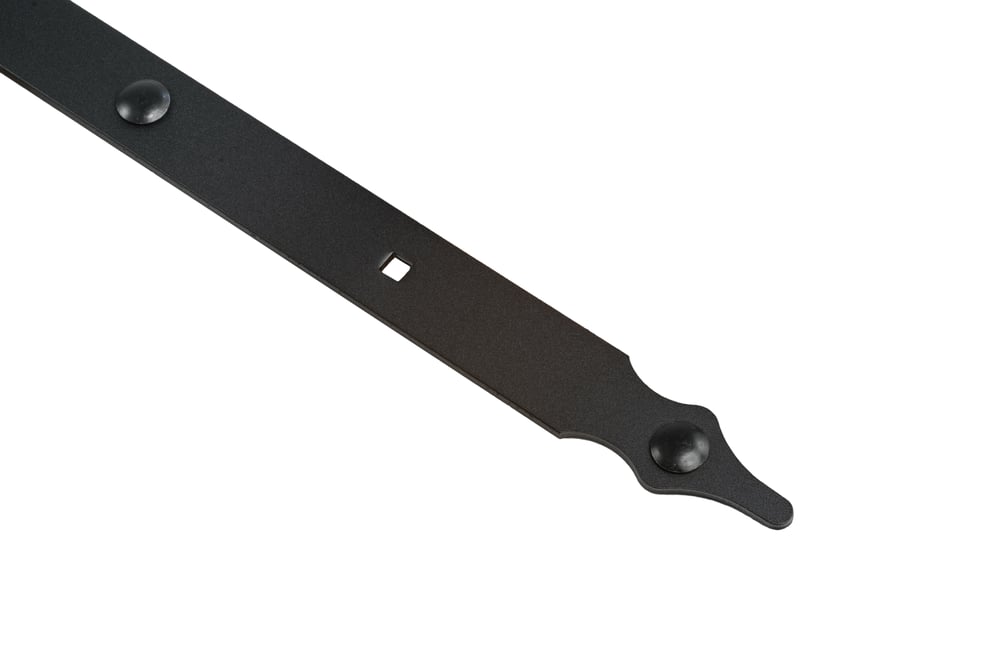

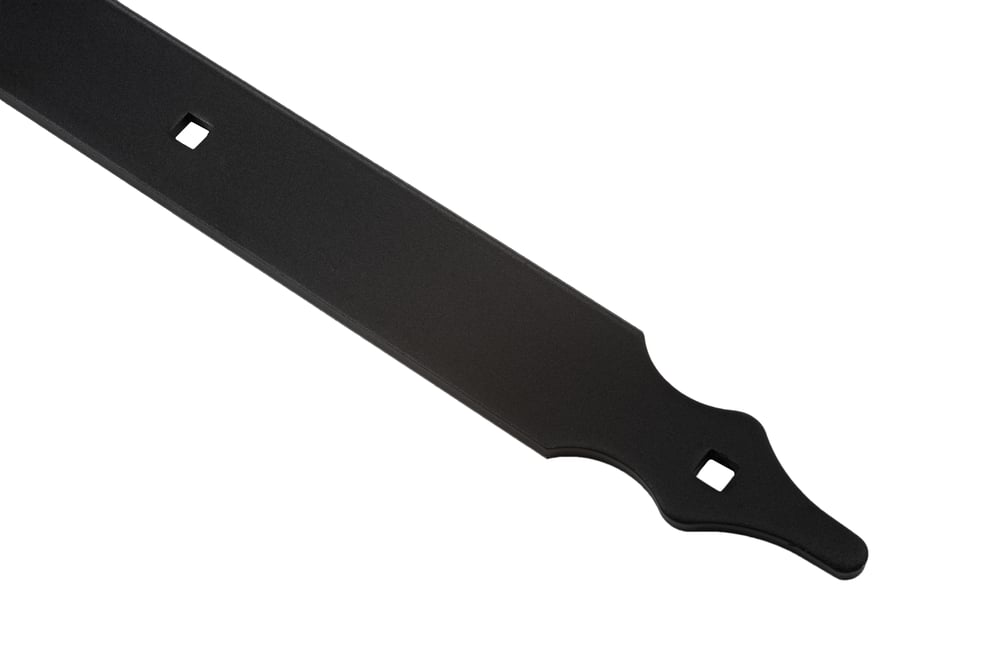

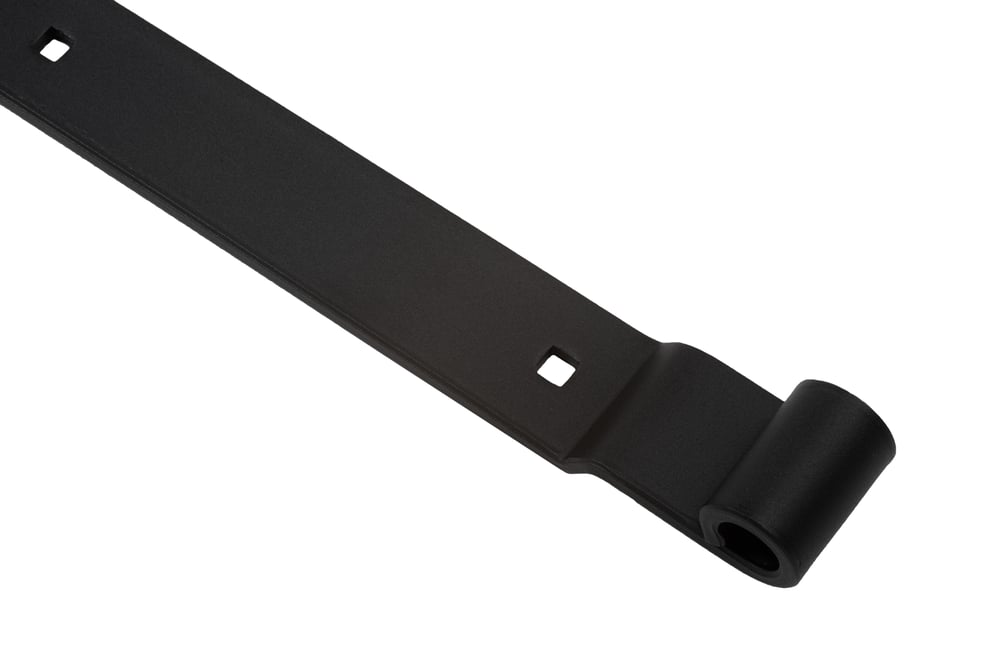

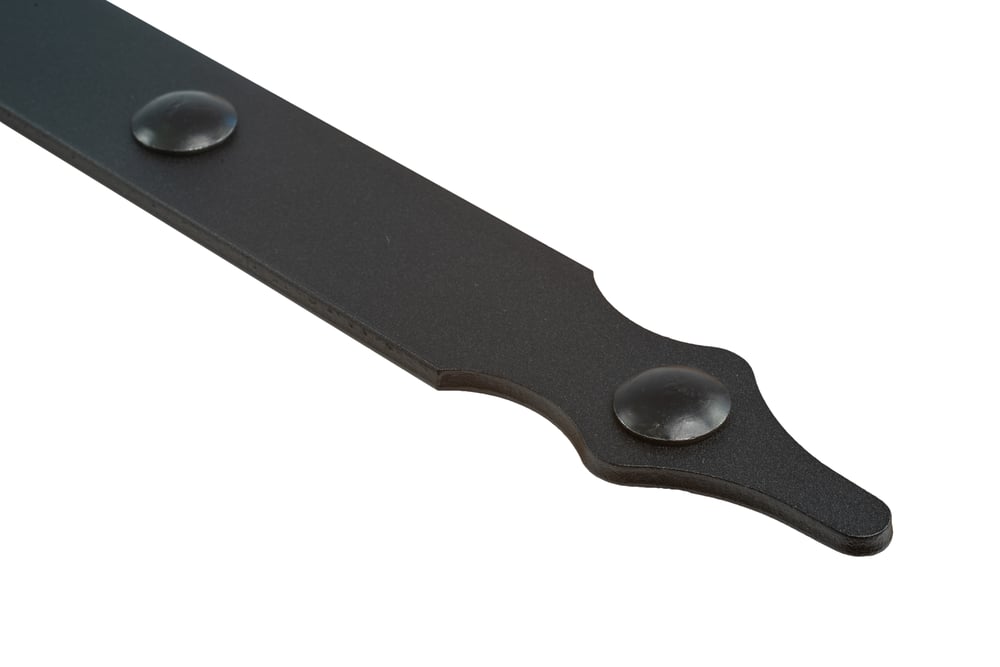

This black hinge with square holes has a slight bend. The bend ensures that your gate or door is flush with the post to which it is attached. Your door or garden gate therefore falls exactly in the door frame. With straight hinges, also called flat hinges, the gate will stick out slightly.

Hinge hooks

Hinges black with square holes have a matte black powder coating, instead of a regular black finish. That is why you should also order special hinge hooks for hinges with square holes. These have the same powder coating. Furthermore, these hinge hooks, like the square hole hinges, are thicker and stronger.

Dimensions black hinge 120 cm

This hinge is 120 cm long, 4 cm wide, and 5 mm thick. The square mounting holes measure 9 x 9 mm. The diameter of the eye is 16 mm.

With which carriage bolts do I mount these hinges?

This cranked hinge has 6 square mounting holes. These holes are 9 x 9 mm. The square part under the head of our black carriage bolts M8 fits these measurements exactly. This ensures a beautiful finish when mounting the hinges.  You can find the correct length by adding 15 cm to the thickness of your door. For example, is your garden gate 55 mm thick? Then use Wovar carriage bolts black M8 x 70 mm to fasten the hinges. Drill a pilot hole with a hardwood drill bit 9 mm.

Buy black hinges with square holes

Order cranked hinges with square holes today for a competitive price. Order several at the same time to take advantage of our volume discount. Companies in the construction and landscaping industry enjoy additional benefits, such as discounts, with a business account.

Don't forget to add hinge hooks to complete the hook and band hinge.

Do you prefer flat hinges or offset hinges? Explore our entire range of gate hinges.
