Why choose for Joist Hanger Heavy Galvanized for 6.3 x 17.5 cm Beams - Each?
- Competitively priced
- Extra strong
- 43 handy screw holes

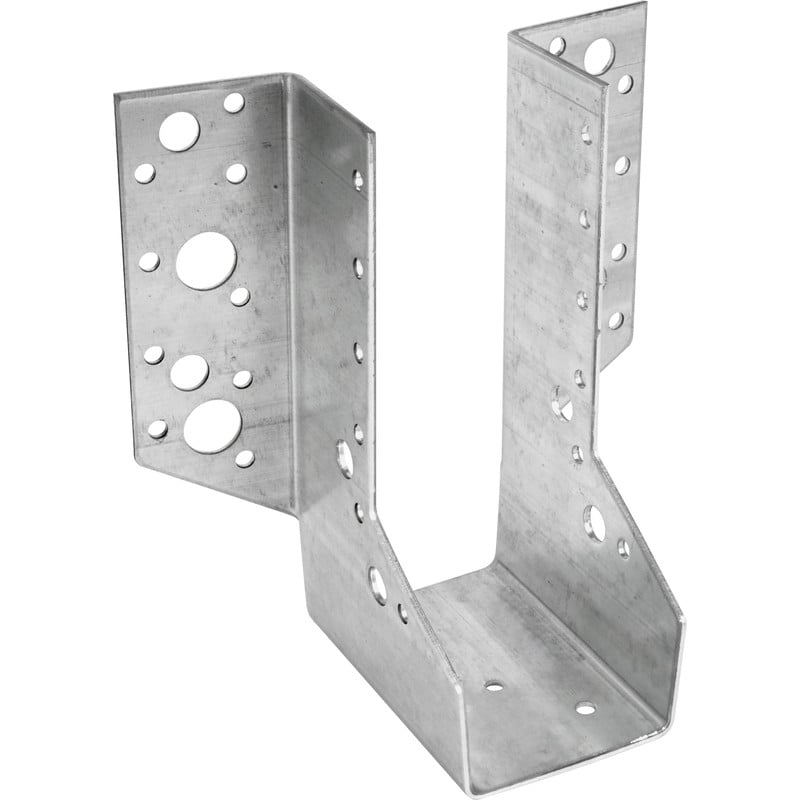

Joist Hanger Heavy Galvanized for 6.3 x 17.5 cm Beams - Each
This joist hanger has 43 screw holes and is suitable for 6.3x17.5cm beams. The weight of these beams is no problem for these strong galvanized beam carriers. Because the joist hangers are made of galvanized steel, there is a risk that they will oxidize. Therefore try not to damage the galvanizing layer. This will not happen if the galvanizing layer remains completely intact.

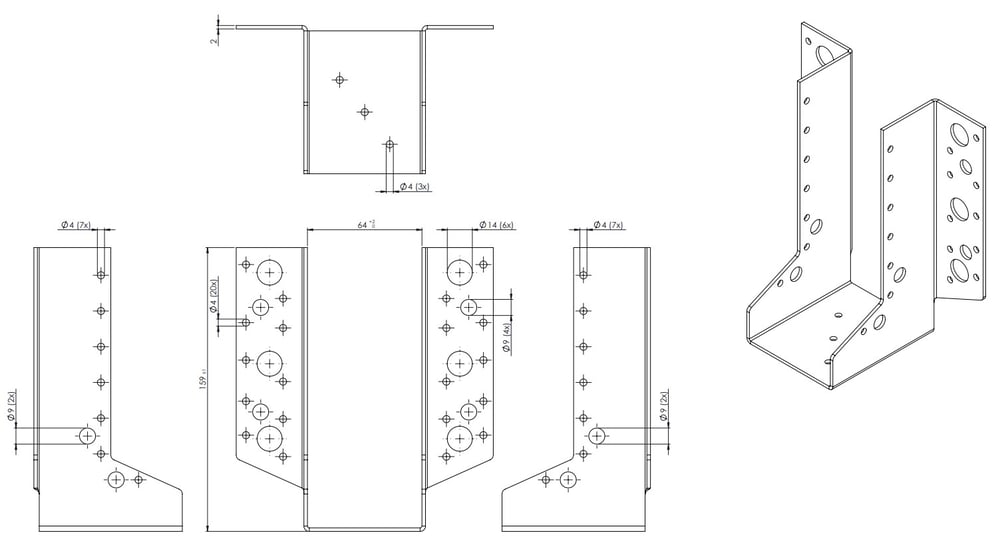

The net inner size of this joist hanger is 64x158mm. The outer size has a width of 180mm and a height of 160mm. Mount the joist hanger on wood with our chipboard screws.
What is the carrying capacity of this joist hanger?
The load capacity of this Wovar joist hanger is shown in the table below. In the image on the right you can see which abbreviation belongs to which wearing direction. For example, DR stands for the bearing capacity downwards, DW for the lateral strength and T for the force of the beam or wall. As you can see, the load capacity is higher when you use screws. The load capacity was tested with a total of 34 galvanized screws 5 x 35 mm. It is recommended to use a minimum of 4.0 mm screws. The load-bearing capacity for fastening with nails has been tested 4x40 mm threaded nails 34 pcs.
|Attachment||with Nails||with Screws|
|DR||1062 KG||4084 KG|
|DW||1836 KG||4504 KG|
|T||130 KG||3153 KG|
The load-bearing capacity shown in the table applies to T-joints wood to wood. For fastening with screws, it is recommended to use a minimum of 4.0 mm screws *
Order joist hangers online
Buy these strong joist hangers at Wovar, your wholesaler in screws and hardware. Order a minimum of 10 pieces and take advantage of an extra discount. Green and construction companies, such as DIY companies, construction companies and gardeners, receive extra benefits at Wovar, such as discounts with a business account.
Is this joist hanger not quite what you are looking for? View our entire range of joist hangers or beam supports here. Are you building a canopy? Also check out our strong wood construction screws.
